IKEDA 4’ RADIAL ARM DRILL

Specifications:
Model                           RM-1175
Manufacture Date       1981
Serial Number              81139
Column To Spindle Base (Min/Max) 12.5″ / 54.5″
Column Diameter        12″
Arm Length                  4′
Spindle Stroke             14.5″
Quill Diameter             3-5/8 In
Spindle Speeds            (12) 45 – 1,500 Rpm
Spindle Taper               Morse No. 4
Spindle Feeds               (9) 0.003″ – 0.40″
Motor                           7.5 Hp
Electrics                       220/440v; 3 Ph
Machine Weight          7,000 Lbs. approx
Power Elevation          Yes
Arm Clamp                 Power

Price: $8,500   FOB Houston, TX.

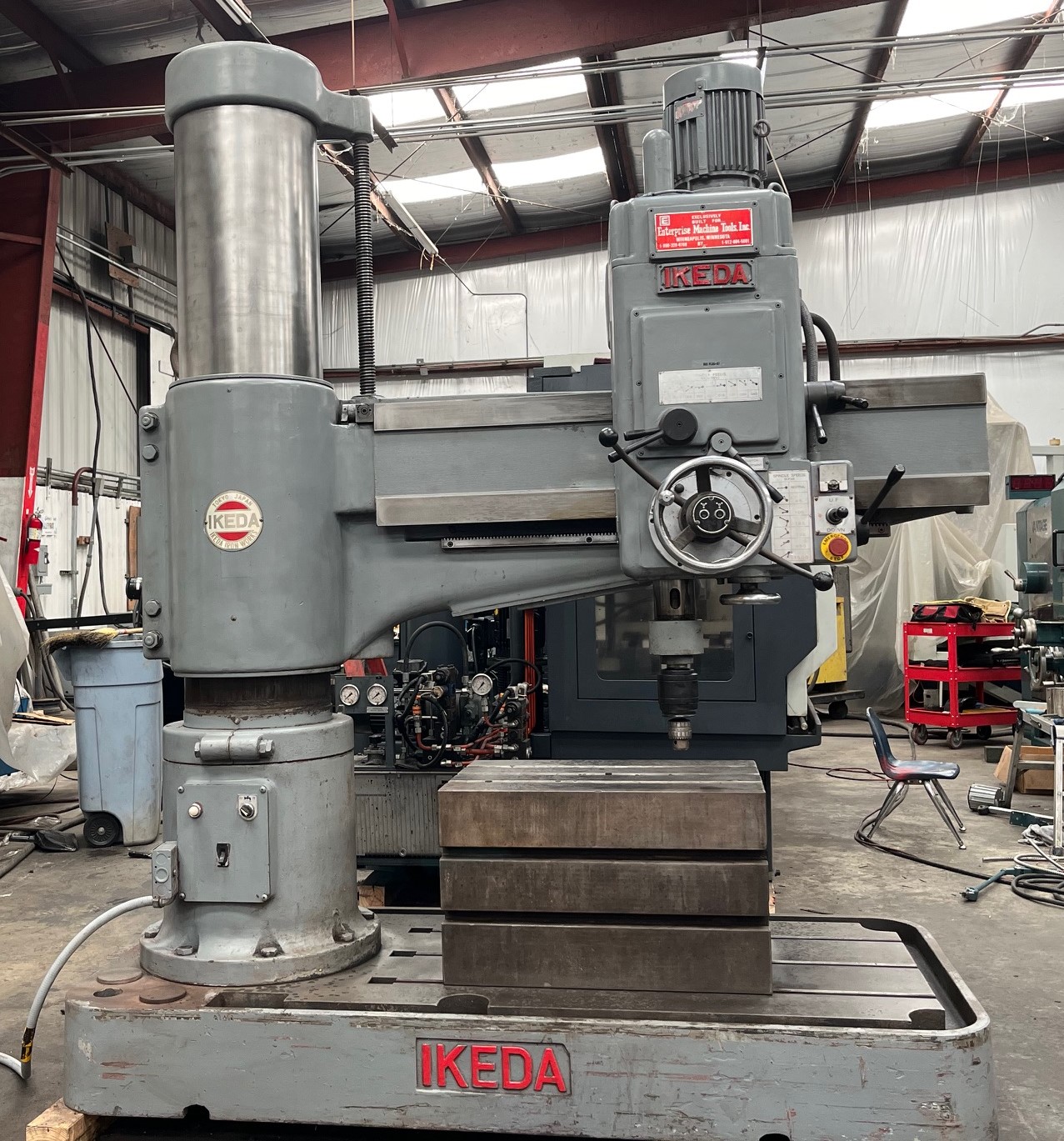

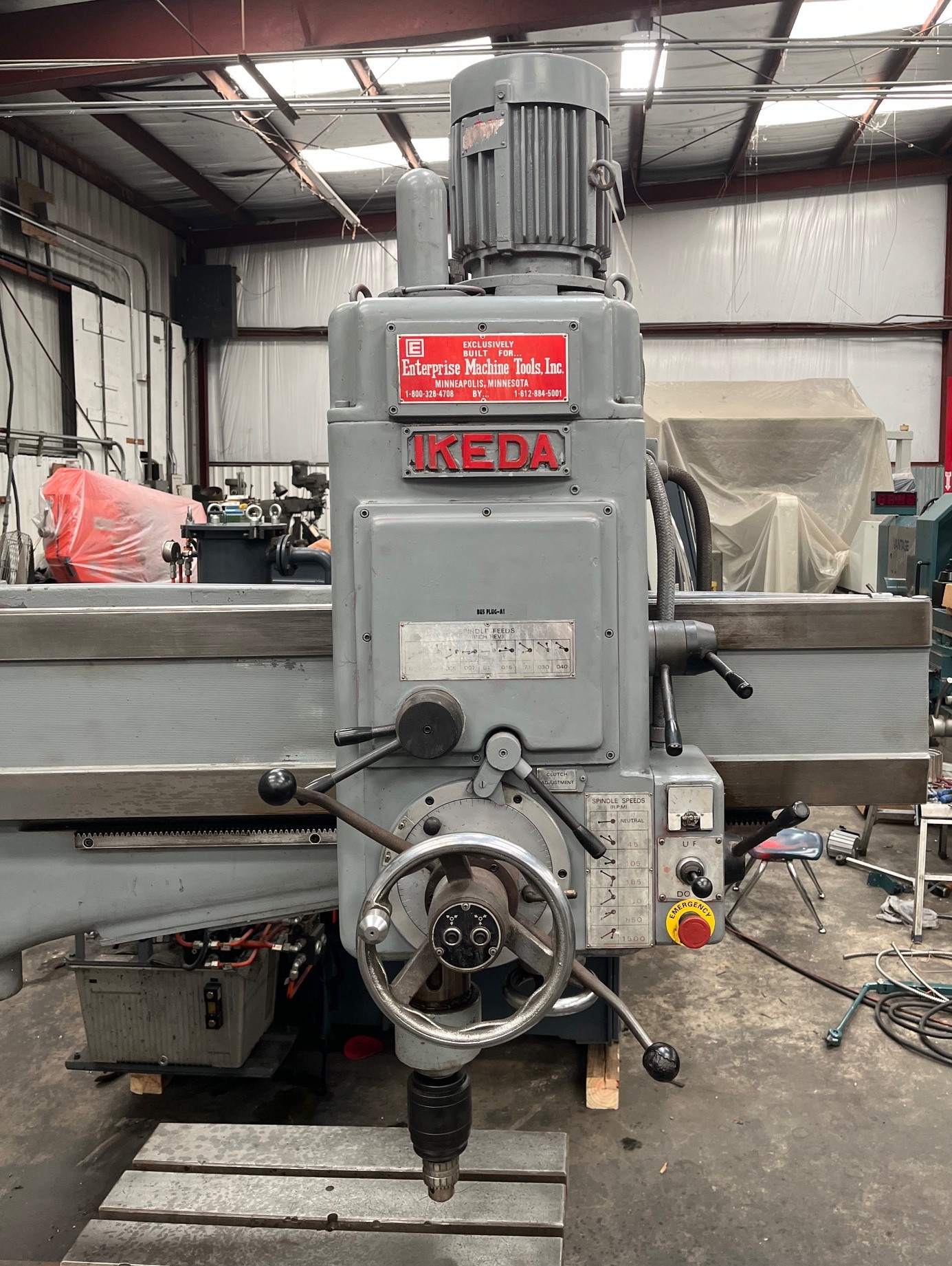

Ikeda RM 1175 radial arm drill
