KINGSTON 2660HD MANUAL ENGINE LATHE
Specifications:
Model HD2660
Serial number
CH03266 (Taiwan)
Date of
manufacture
2004
Swing over bed
26”
Swing over
cross slide
17.5”
Swing in gap
35”
Length of gap
9”
Tool post Aloris 2-way tool post
Spindle bore
4 1/8”
Chuck
15.5” Set Tru 3-jaw Adjust True with 5 3/5” bore
Chuck guards
Front and Rear
Threading
Inch/metric
Spindle speeds
Two speed headstock
Low range
20-230 rpm (7 steps)
High range
70-800 rpm (7 steps)
Brake
Mechanical foot brake
Taper
attachment
No
Steady rest
10” 3 post roller rest
Bed light
Yes
Travel of spindle barrel 5”
Diameter of
spindle barrel
4”
Main motor
10 HP
Digital
readouts
Sony
Shipping weight
10,000 lbs.
Voltage
220/3/60
Dimensions
10’ W x 4’ L x 5’ H
Price: $ 24,500

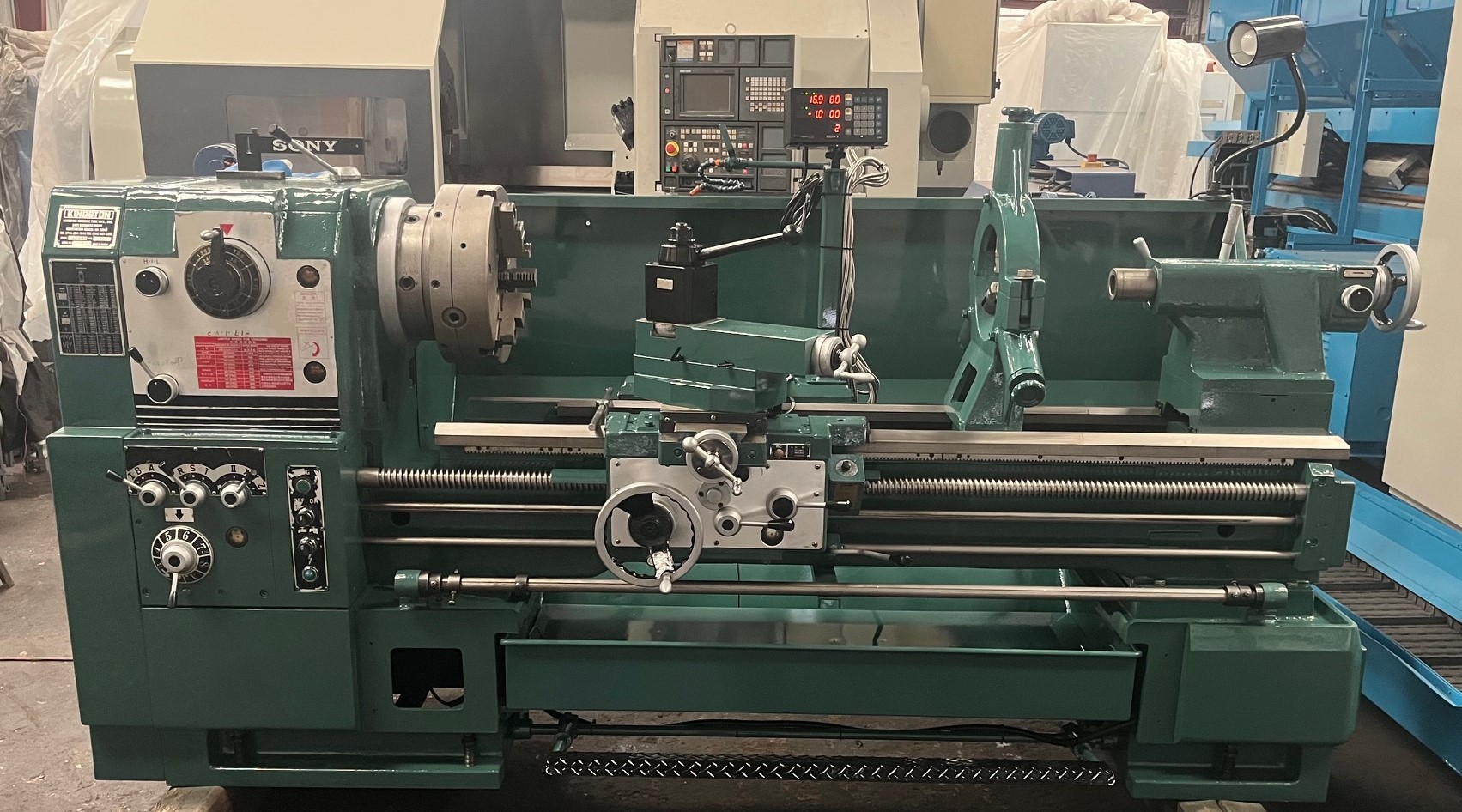

Kingston HD2660 Manual Lathe
