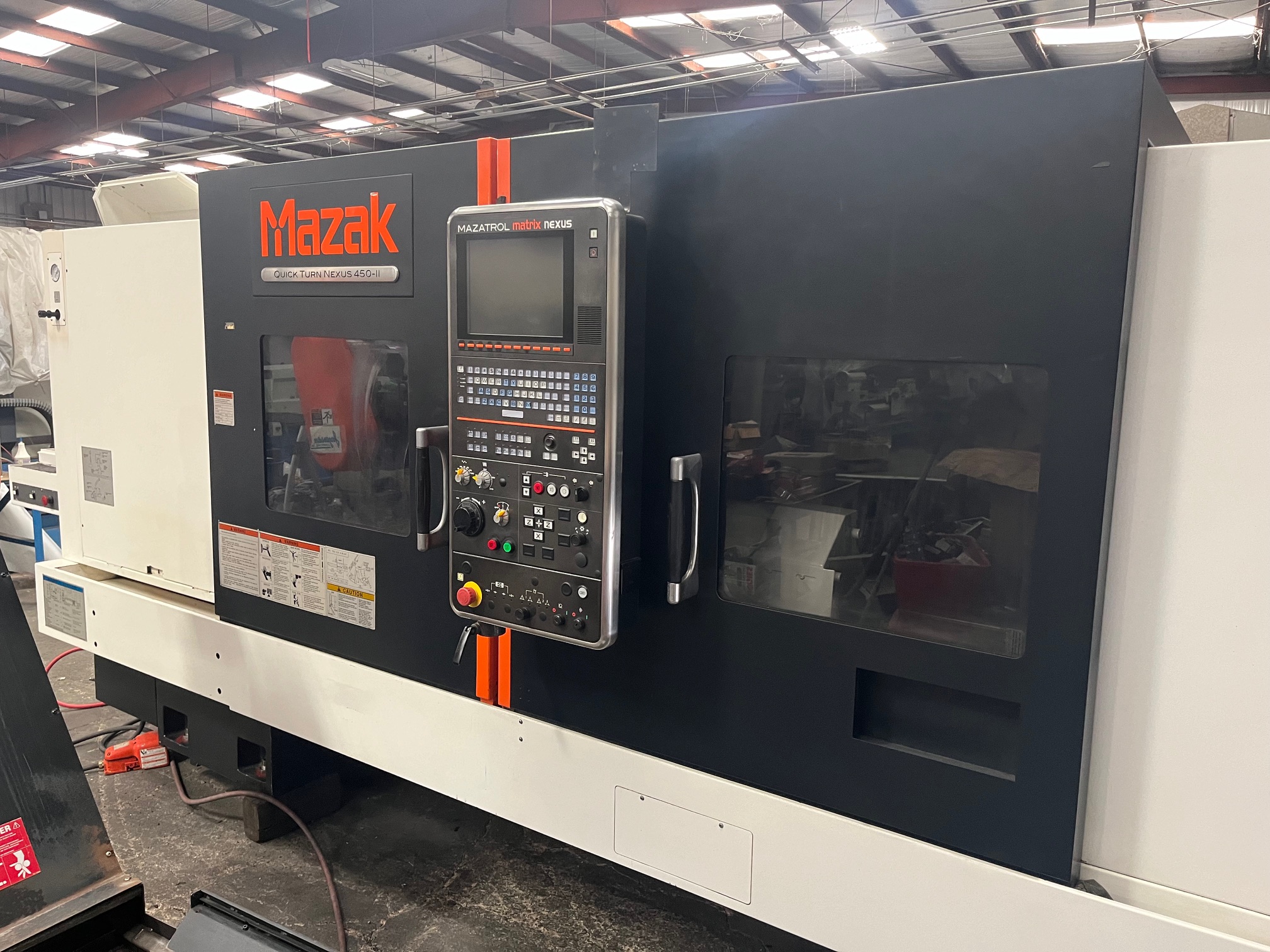

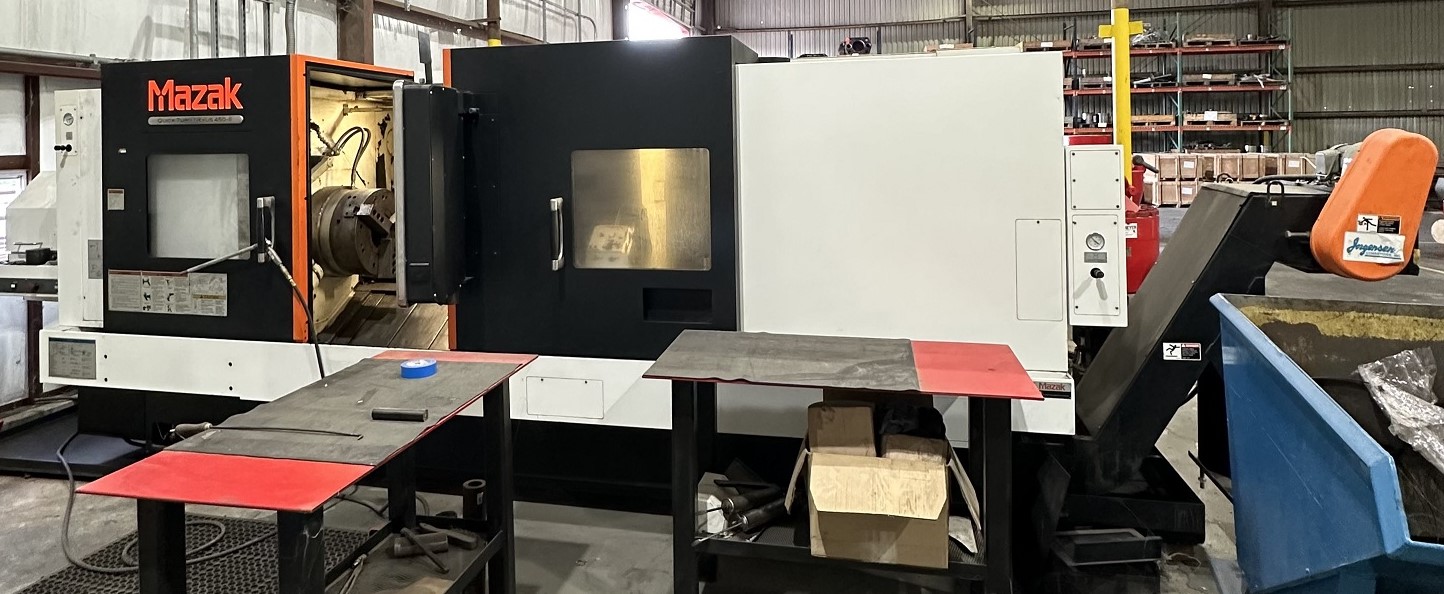

MAZAK QUICK TURN 450 NEXUS CNC LATHE

Specifications:

CNC control Mazak Matrix Nexus CNC Control

Year of manufacture 2012

Maximum Swing 33.07"

Maximum Machining Diameter 22.84"

Maximum Turning Length 80"

X-Axis Travel 13.38"

Z-Axis Travel 80"

Spindle Bore 7.24"

Spindle nose A-2-15

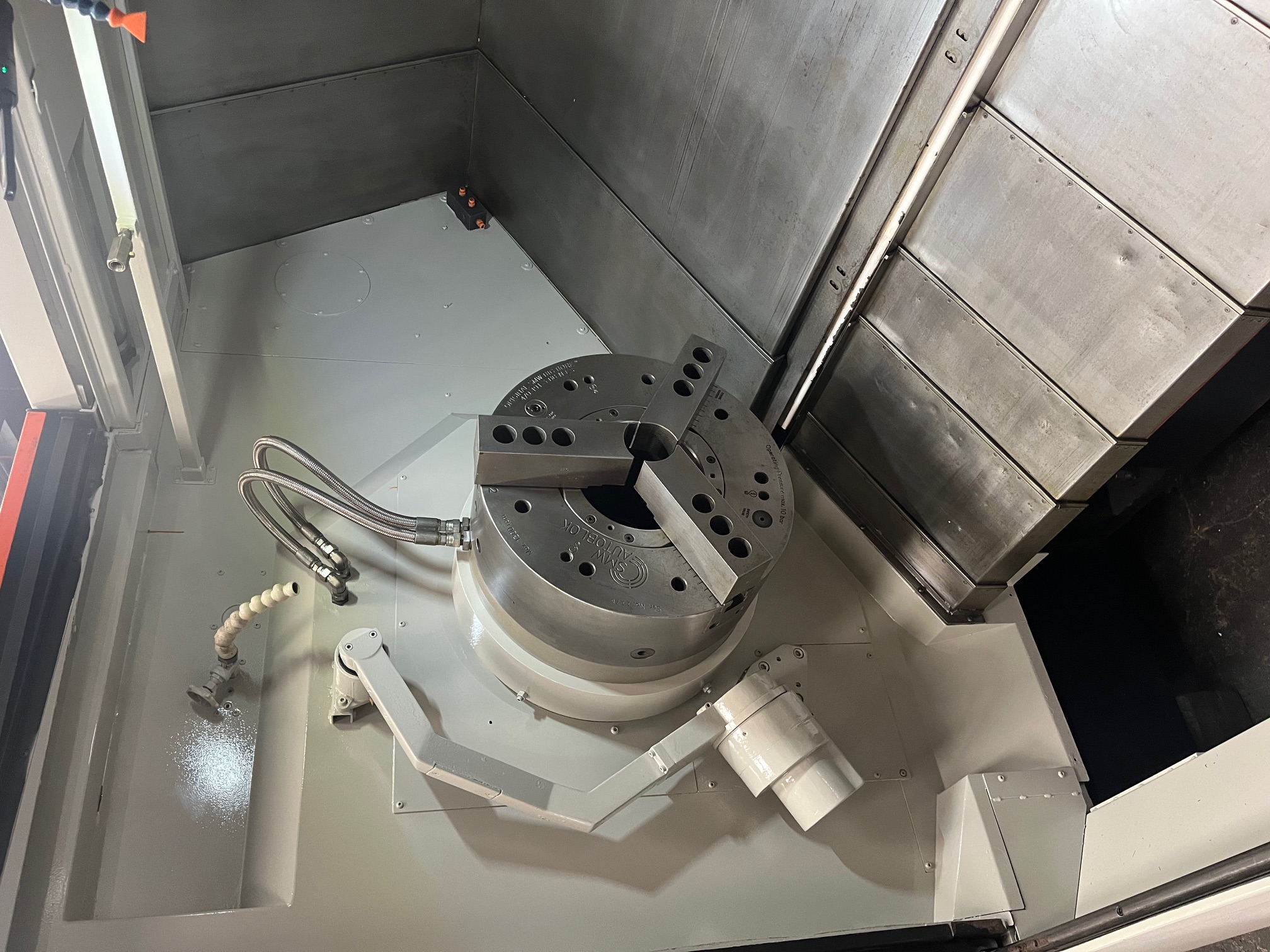

Chucks Front & Rear Ext. Stroke Air Chuck

Spindle Speed 2,000 RPM

Spindle Motor 50 hp.

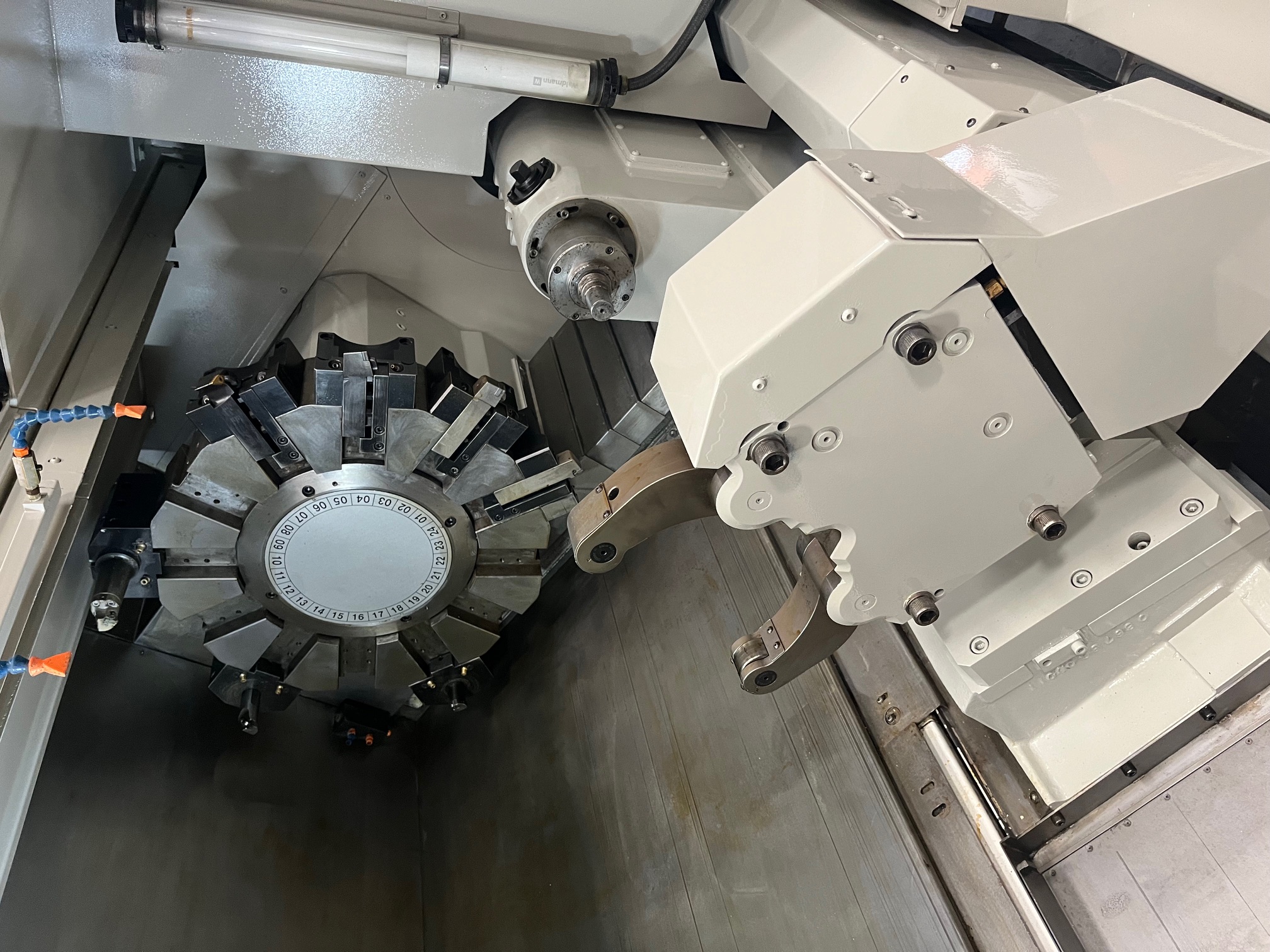

Turret 24 Stations

Automatic steady rest                         Yes
Automatic Tool Eye                            Yes

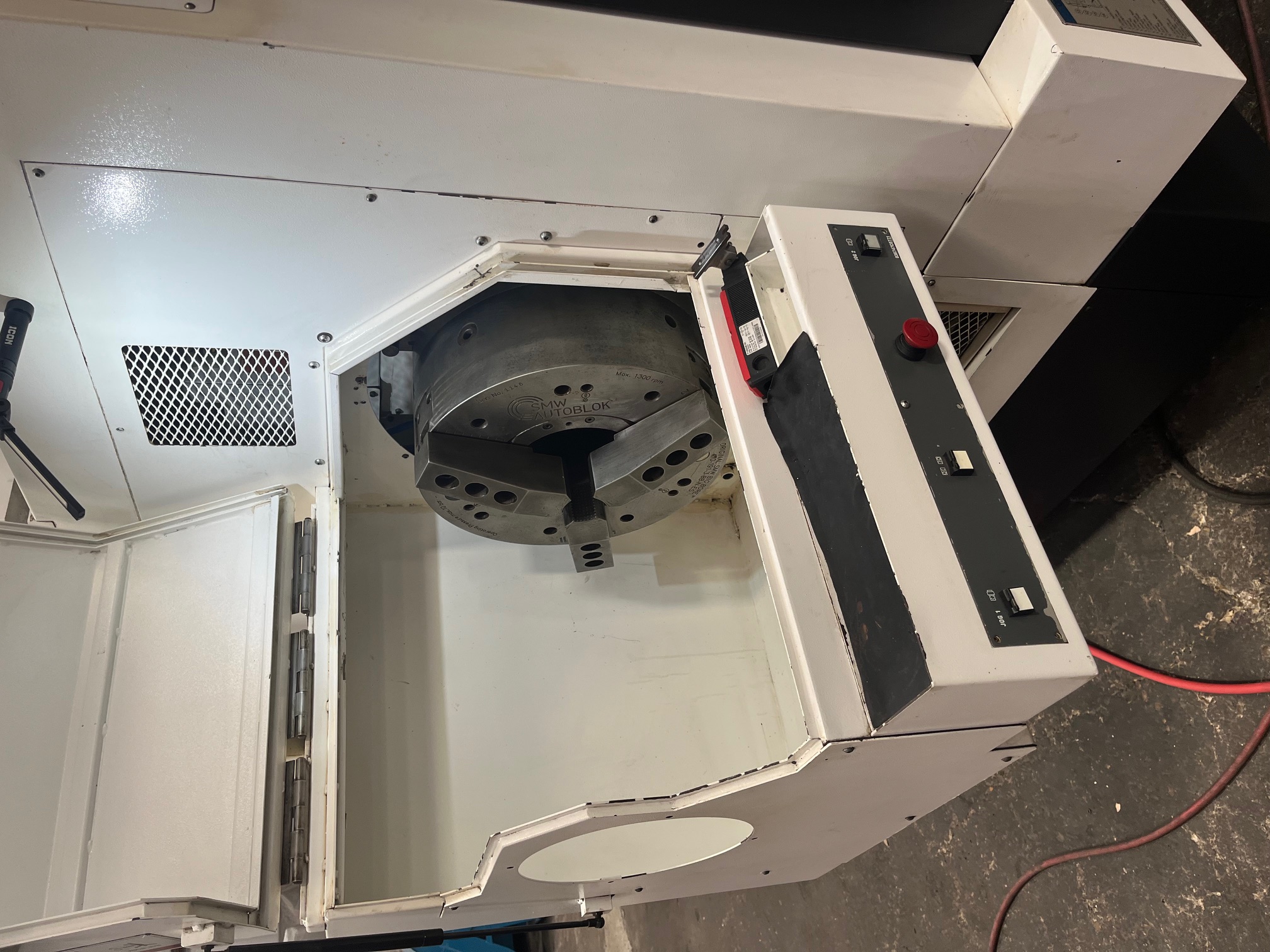

Tailstock                                              Yes
Chip Conveyor                                    Yes

Electrical requirements 220V/3Phz/60Hz/27kVA

Dimensions 17’ x 9’ x 8’
Weight 21,000 Lbs.

Price: $ 154,500. FOB Houston, TX. Subject to Prior Sale.

New cost today: Approximately $ 400,000 as equipped.

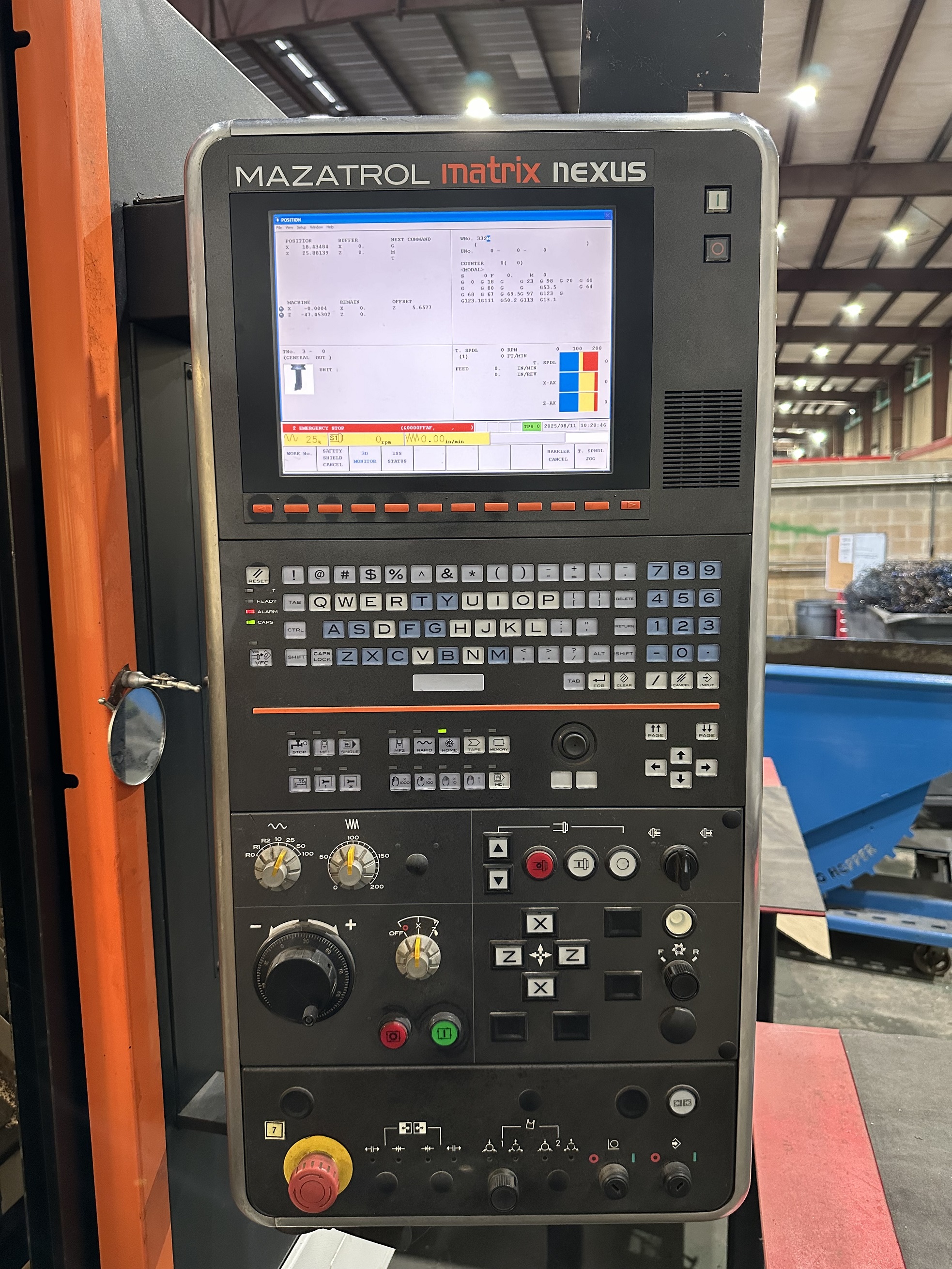

CNC control features: 12.1″ Color LCD, USB I/F (2-PORT), Lan Port. MT Connect Preparation,

User Macros, EIA/ISO Input, Function, Back ground Tool Path Check, Thread Cutting Function,

Polar Coordinates Input (G122), Velocity and Feed rate Control, Mazak Voice Adviser, Virtual

Machining, Re-Threading, Thread Start Point Compensation, Jorgensen Chip Conveyor
