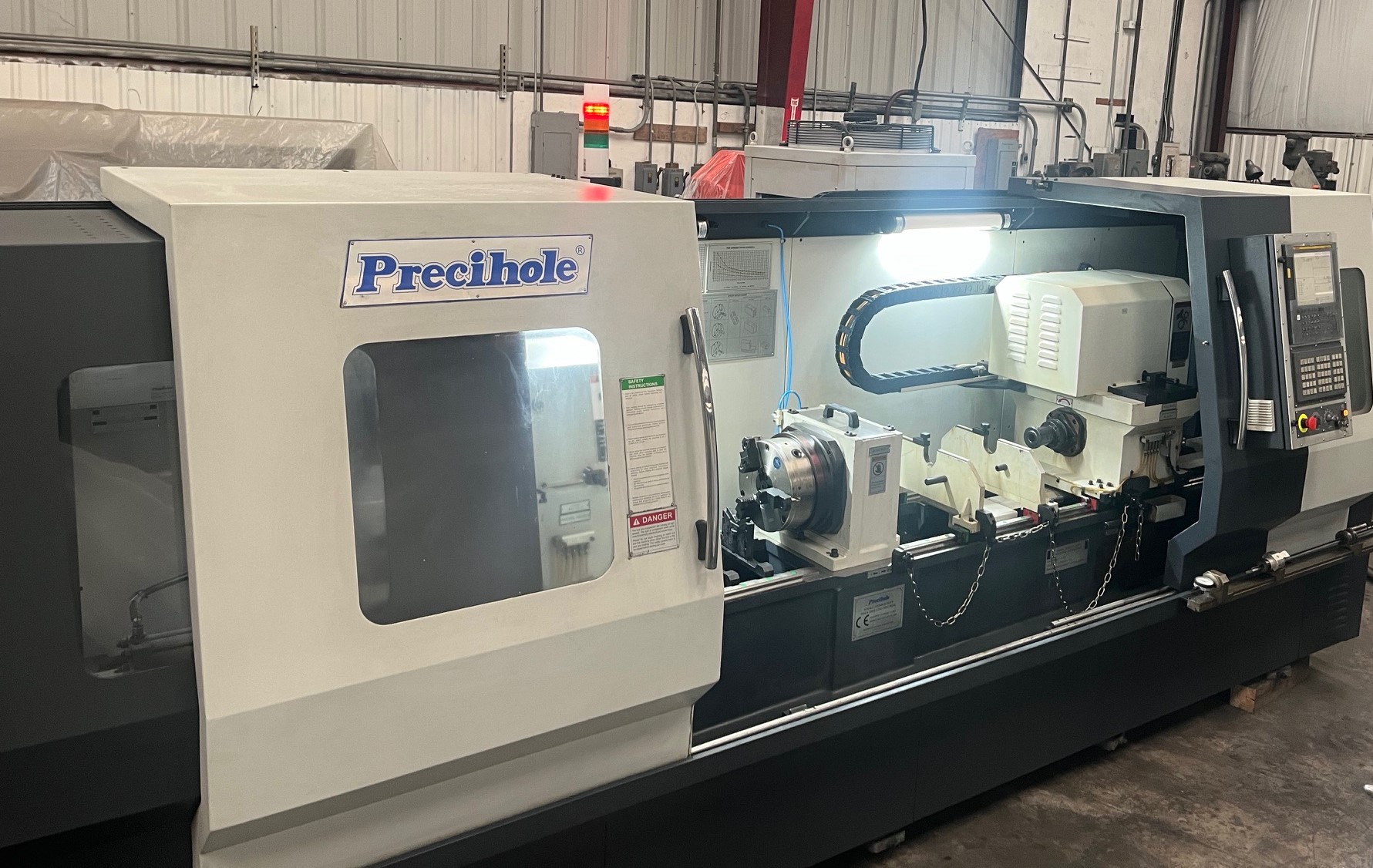

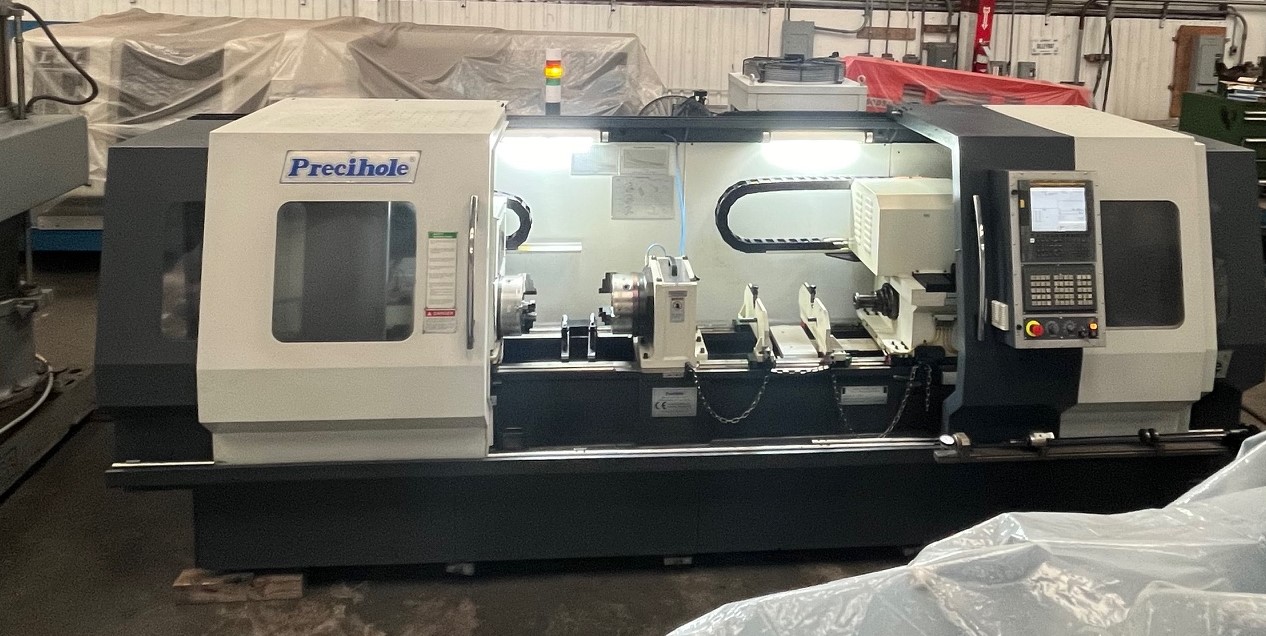

PRECIHOLE CNC SINGLE SPINDLE GUN DRILL
Specifications:

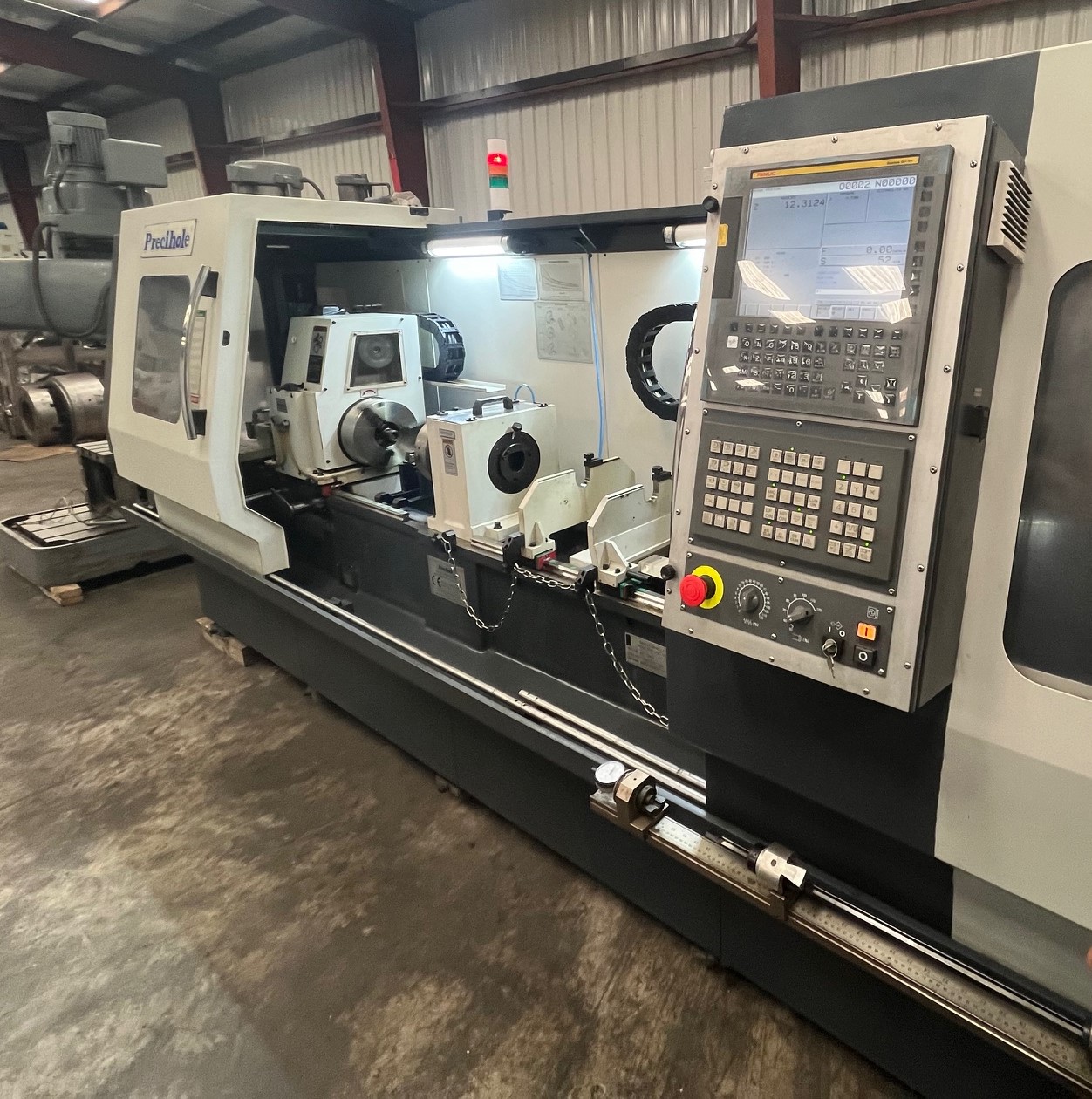

Control Fanuc Oi-TF
Model GVN 25 C/1-600
Drilling diameter range 0.315—1”
Number of spindles
1
Spindle speeds
600-3,300 rpm.
Power per spindle
10 hp.
Maximum drilling length
40”
Part OD range
0.75—3”
Part clamping system
Hydraulic cone clamping/
Chuck clamping
Maximum component weight
88 lbs.
Rapid traverse rate
315” per minute
Drill feed range
0—8” per minute
Coolant tank capacity
277 gallons
Maximum coolant pressure
870 psi.
Weight
12,500 lbs.
Dimensions
16’ 4” W x 8’ L x 7’ H
(chip conveyor can be removed saving 1’ in width)
Chip hopper
3’ W x 3’ L x 2’ H
Box of tooling
24” W x 12” L x 40” H
Precihole gun drilling
machines offer the best combination of output parameters
like hole straightness, surface finish and bore tolerance.
Machine Features:
-
Part counter rotation for superior
hole straightness
-
Quick clamping arrangement for
ease of loading and unloading parts
-
Use of ball screw and servo drives
for linear motion
-
Multiple tool steadies to provide
solid tube support
-
Rotating cone or self-centering
chuck arrangement for part clamping
-
High pressure coolant and fine
filtration system
-
Oil chilling and automatic
lubrication
YouTube:
https://youtube.com/shorts/HCmIeM1iSsk?si=m3bzLLaKnnJ4KDZi
Price: $ 99,500.00 Houston, TX. Subject to Prior Sale.
