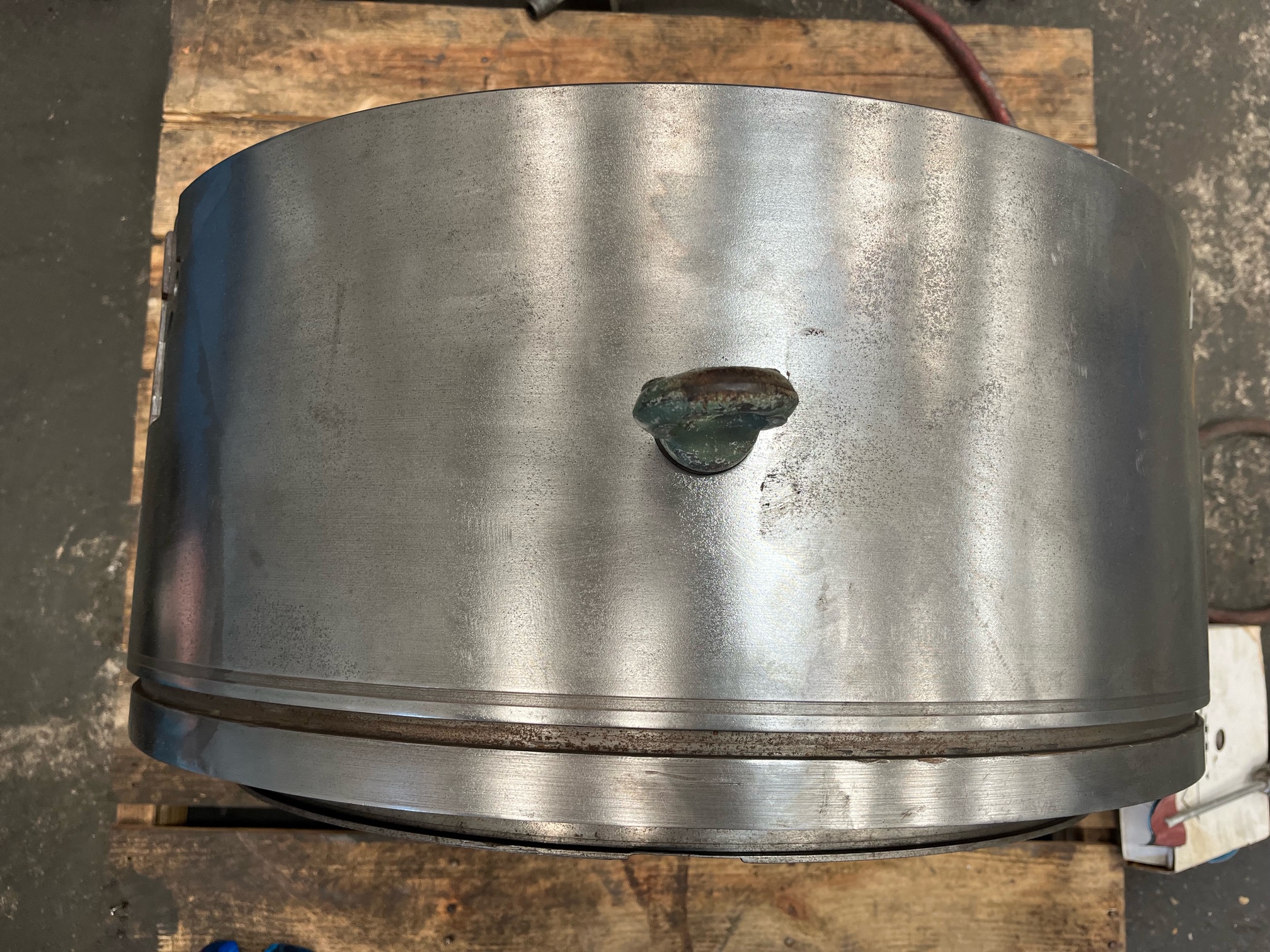

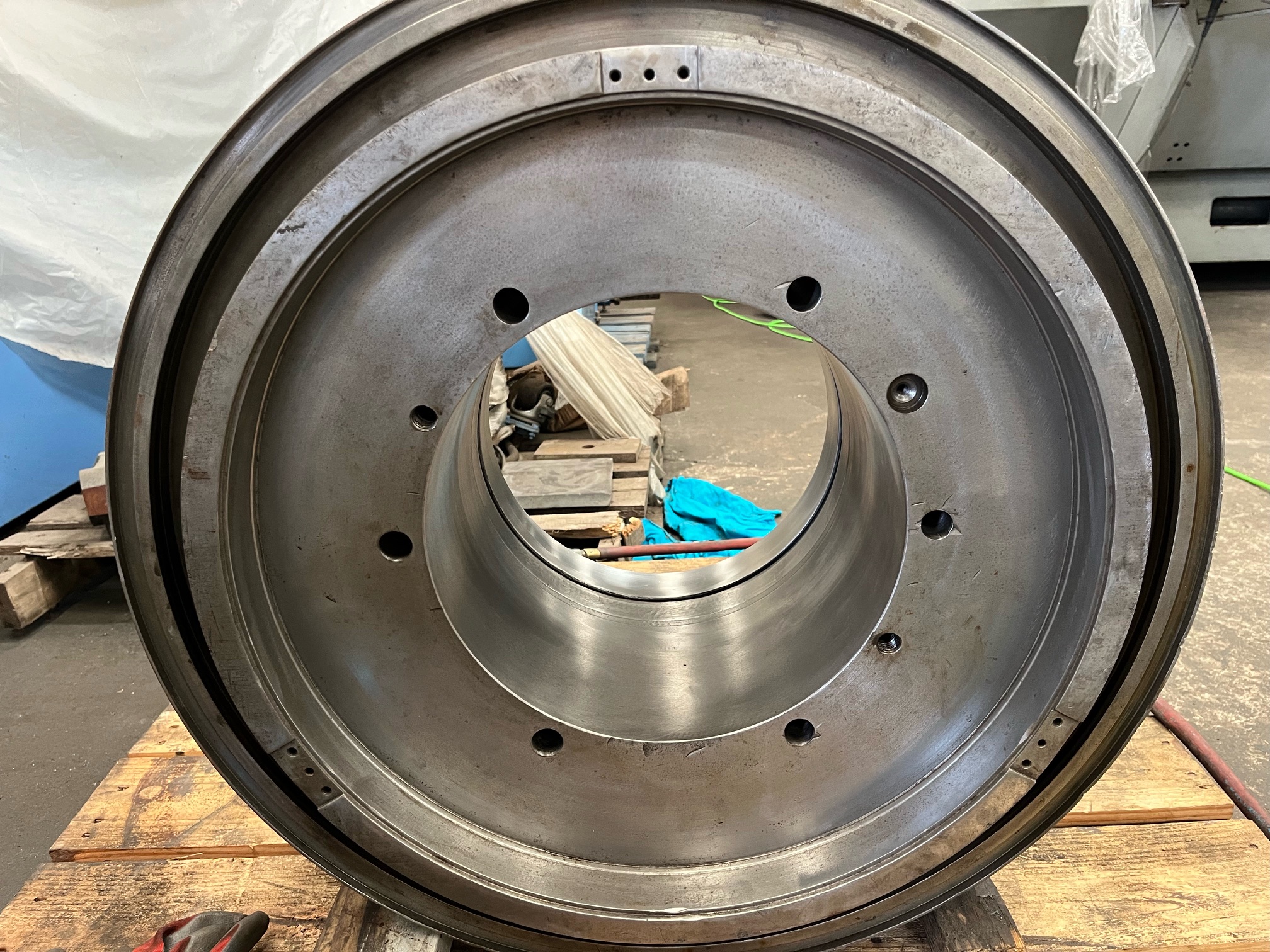

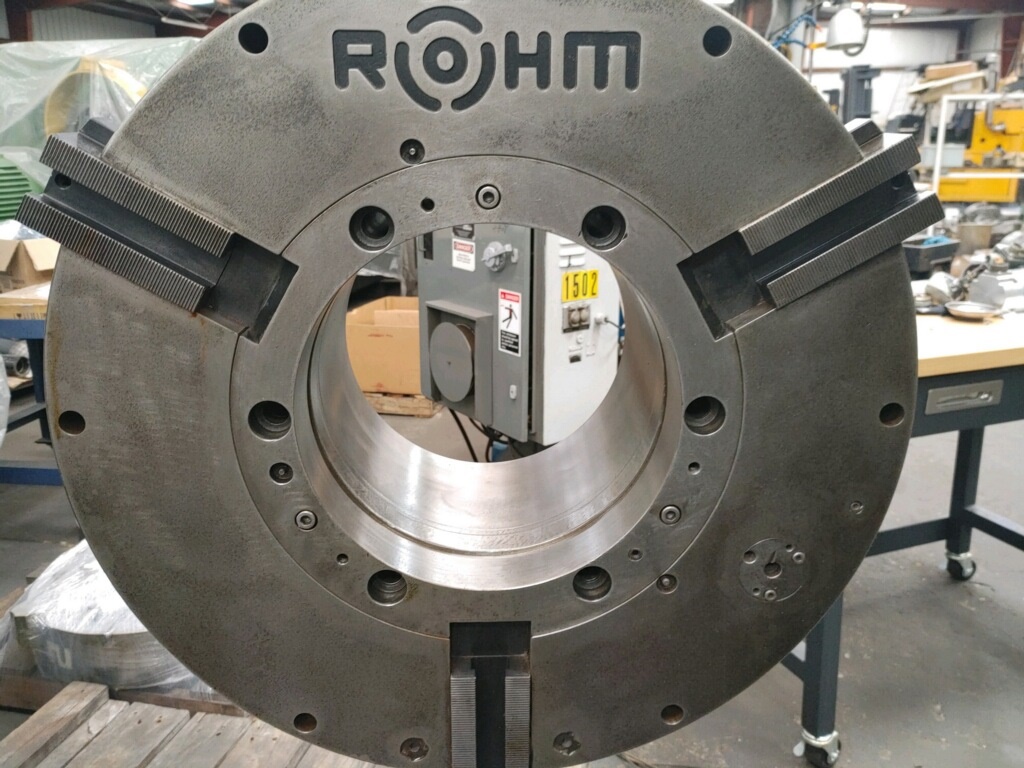

ROHM LVE 630-325 EXTENDED STROKE AIR CHUCK
Specifications:
Model
ROHM LVE 630-3-325 ES
Serial
number
None
Diameter, OD
26.75”
Thru hole,
ID
12.8”
Spindle nose
Flat back
Stroke per
jaw
1.00” (25.4 mm)
Clamping
stroke per jaw
0.33” (8.5 mm)
Jaw
serrations
3/32 x 90’
Maximum rpm
900 rpm
Maximum
clamping force
280.0 kN at 6 bar or 90-120 lbs. shop air)
Weight
without top jaw tooling 1,100
lbs.
Included

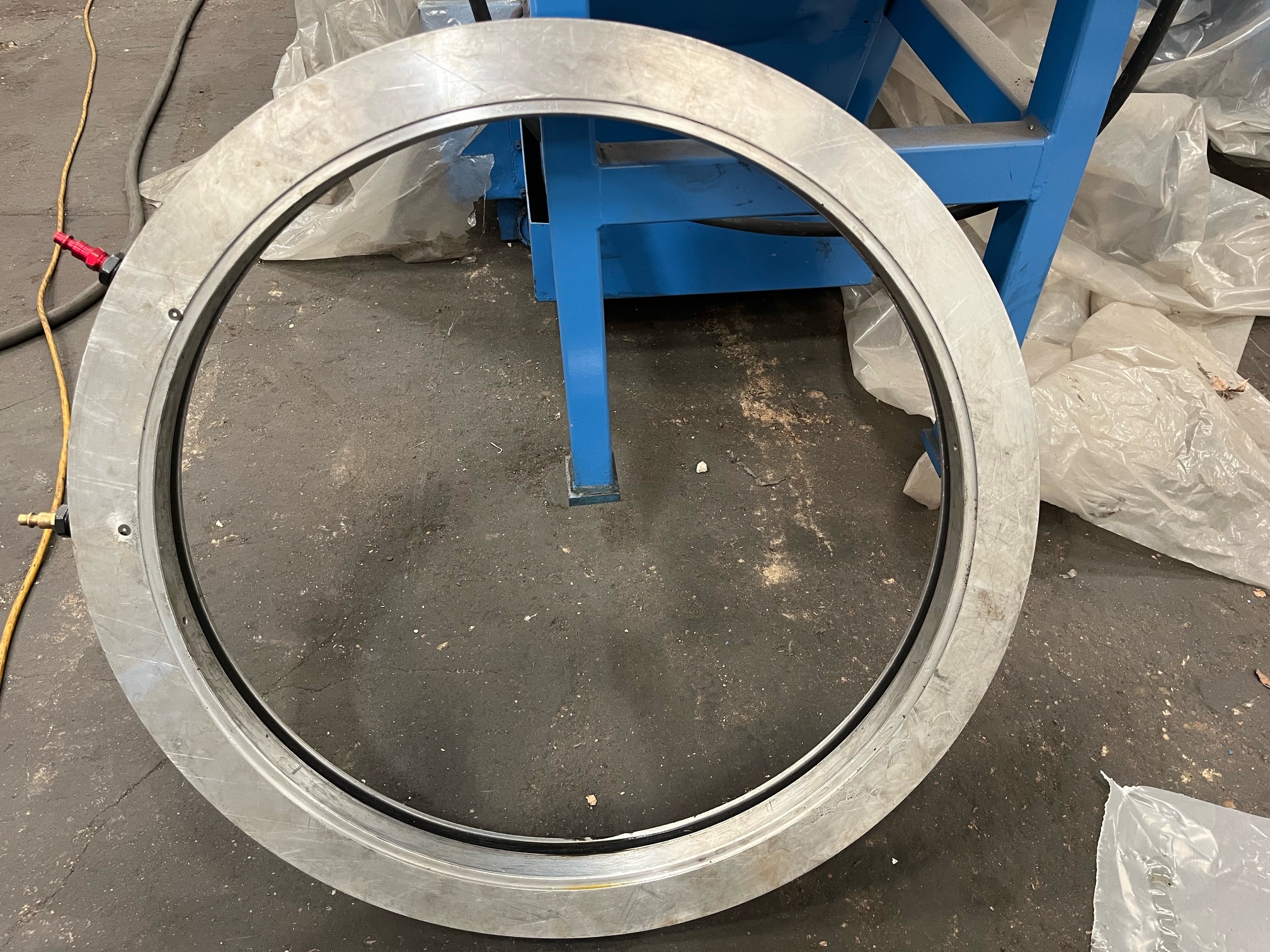

with the chuck: Air distributor ring.
Price: $ 24,500. FOB Houston,
TX.
Condition:
Good. New cost about $ 56,000. The chuck has been
disassembled, cleaned,
and
re-assembled, tested in both the open and closed position.
Sold with a 30-day return
privilege.
