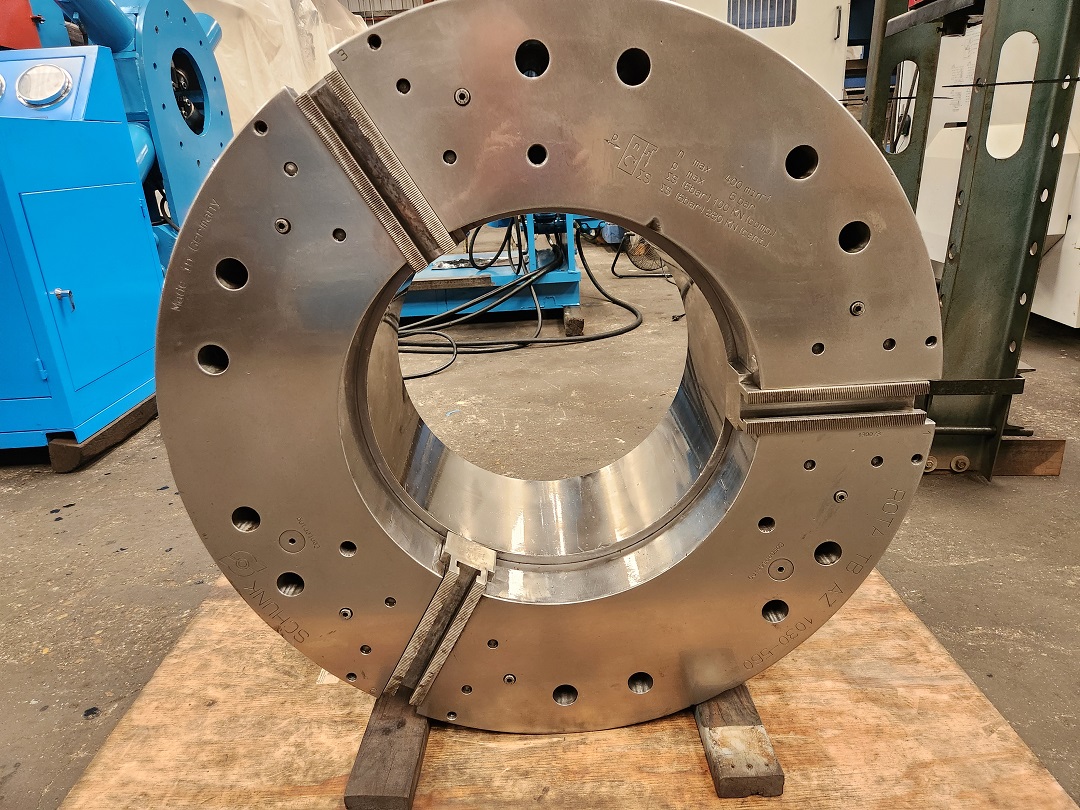

SCHUNK ROTA TB2
1030-560 LH
Specifications:
Model
TB2 1030-560 LH (ES) Front mount
Model
TB2 1000-560 LH (ES) Rear mount
Diameter, O.D.
39.4” (1000 mm.)
Diameter, I.D.
22” (560 mm.)
Spindle back
Z700 (flat back)
Jaw serrations
3/32 x 90
Jaw stroke, total
1” (25.4 mm)
Jaw stroke, rapid
3/5” (15 mm)
Jaw stroke, clamping
1/5” (10 mm)
Maximum clamping force
90 psi (6 bar) = 54,000 lbs. (240 kN)
Maximum rotational speed 500
rpm
Weight
2,200 lbs.
Price: $ 110,000. PAIR.
Delivery: Stock, Houston, TX.
** PAIR:

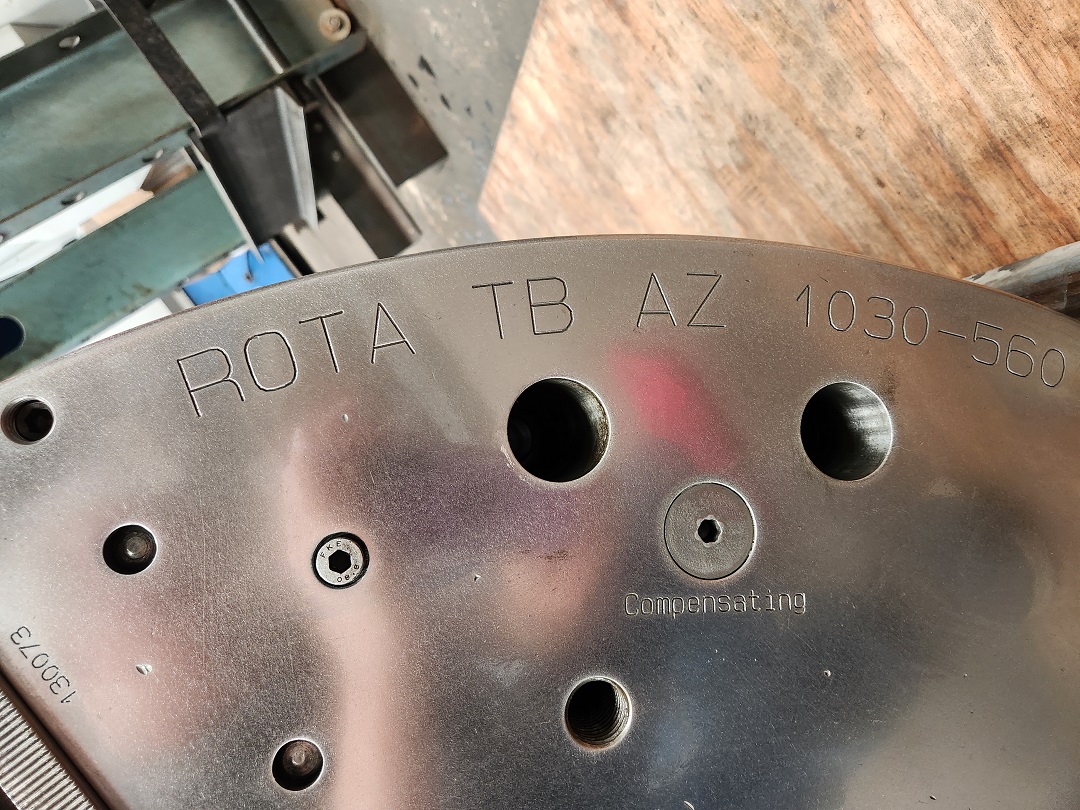

The compensating/self-centering chuck Rota 1030-560
is front mounted. The

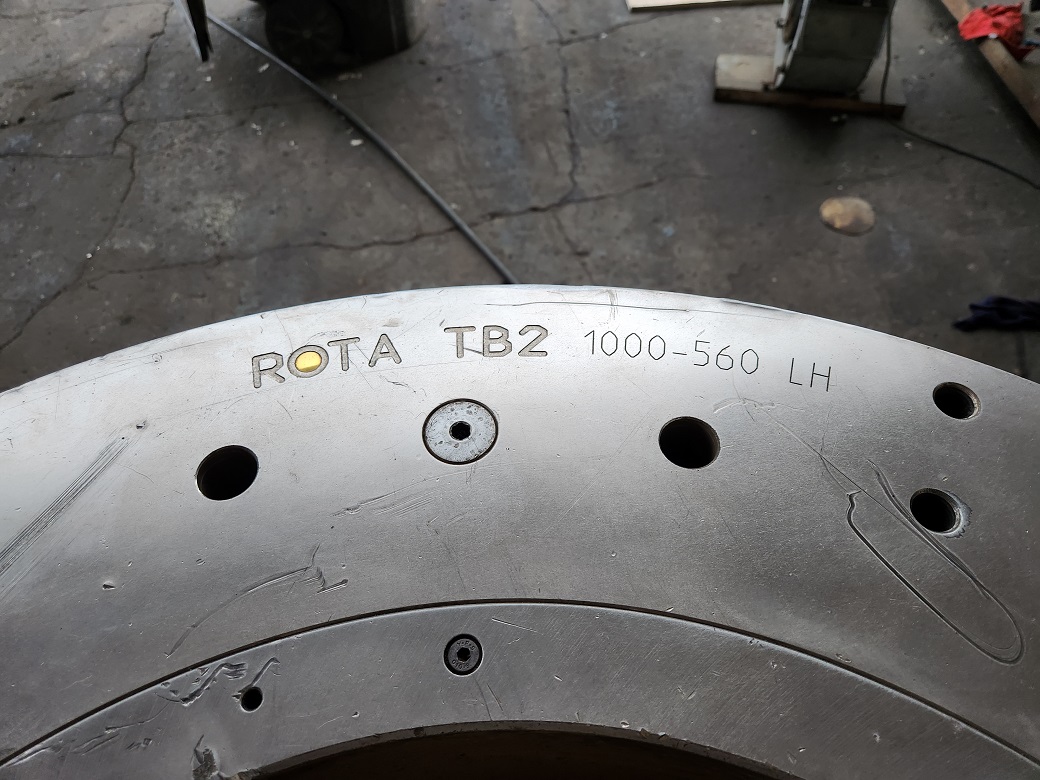

self-centering chuck Rota 1000-560 is rear
mounted.
Condition: Good. Air tested in both
the open and closed position.
Upon disassembly and reassembly,
0-rings replaced as required,
cleaned and regreased.
