VANTAGE

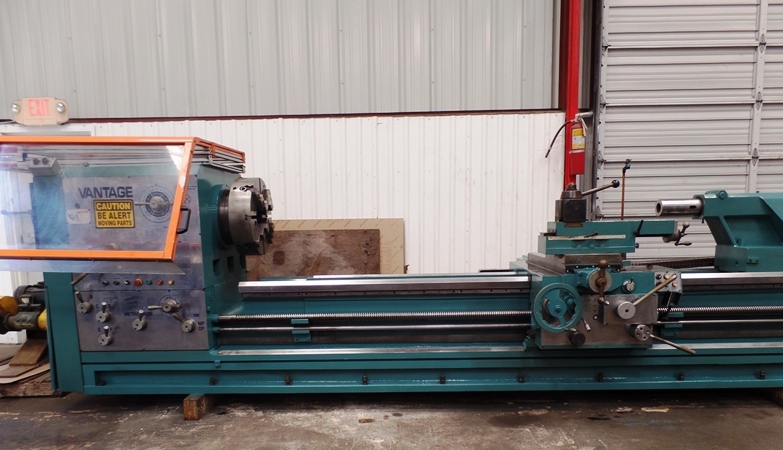

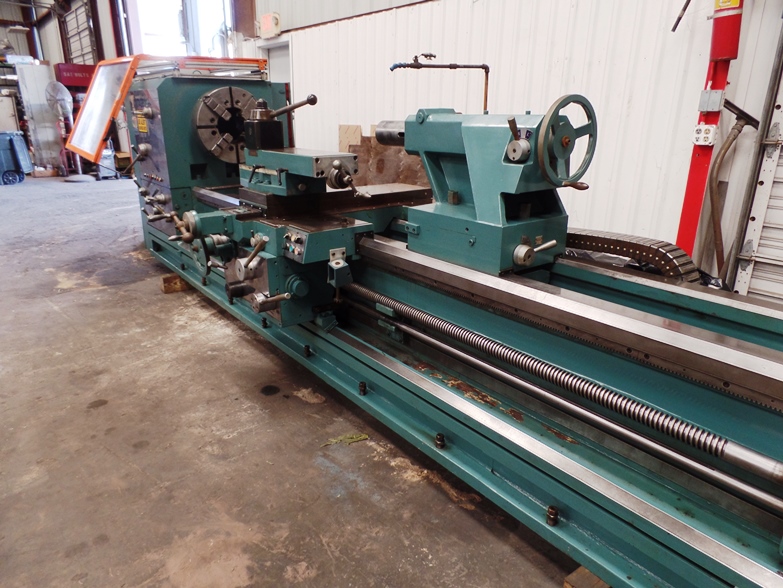

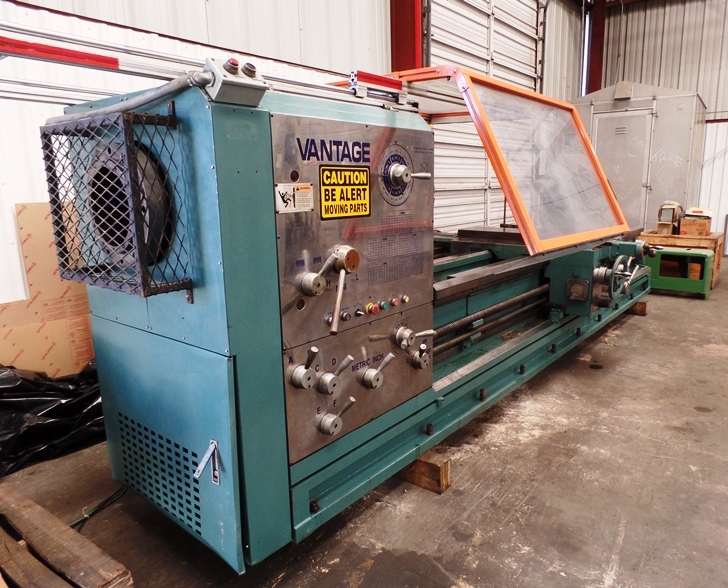

HOLLOW SPINDLE OIL COUNTRY ENGINE LATHE
Specifications:
Swing over
bed
31”
Swing over
cross slide 24”
Swing over
gap
53”
Gap width
from headstock 24"
Distance
between center 120”
Bed
width 22”
HEADSTOCK
Spindle nose A2-15
Spindle bore 9”
Spindle step 18 steps
Spindle
speed 4-428 rpm
CARRIAGE
Cross slide
travel 26.4”
Compound
rest travel 15”
Pitch of
lead screw
2 (TPI)
TAILSTOCK
Tailstock
quill traverse 11.75"
Tailstock
quill inner taper MT # 6
Tailstock
quill diameter 4.5"
Machine weight
10000 kg (22,000 lbs.)
Price:
$ 72,500. FOB
