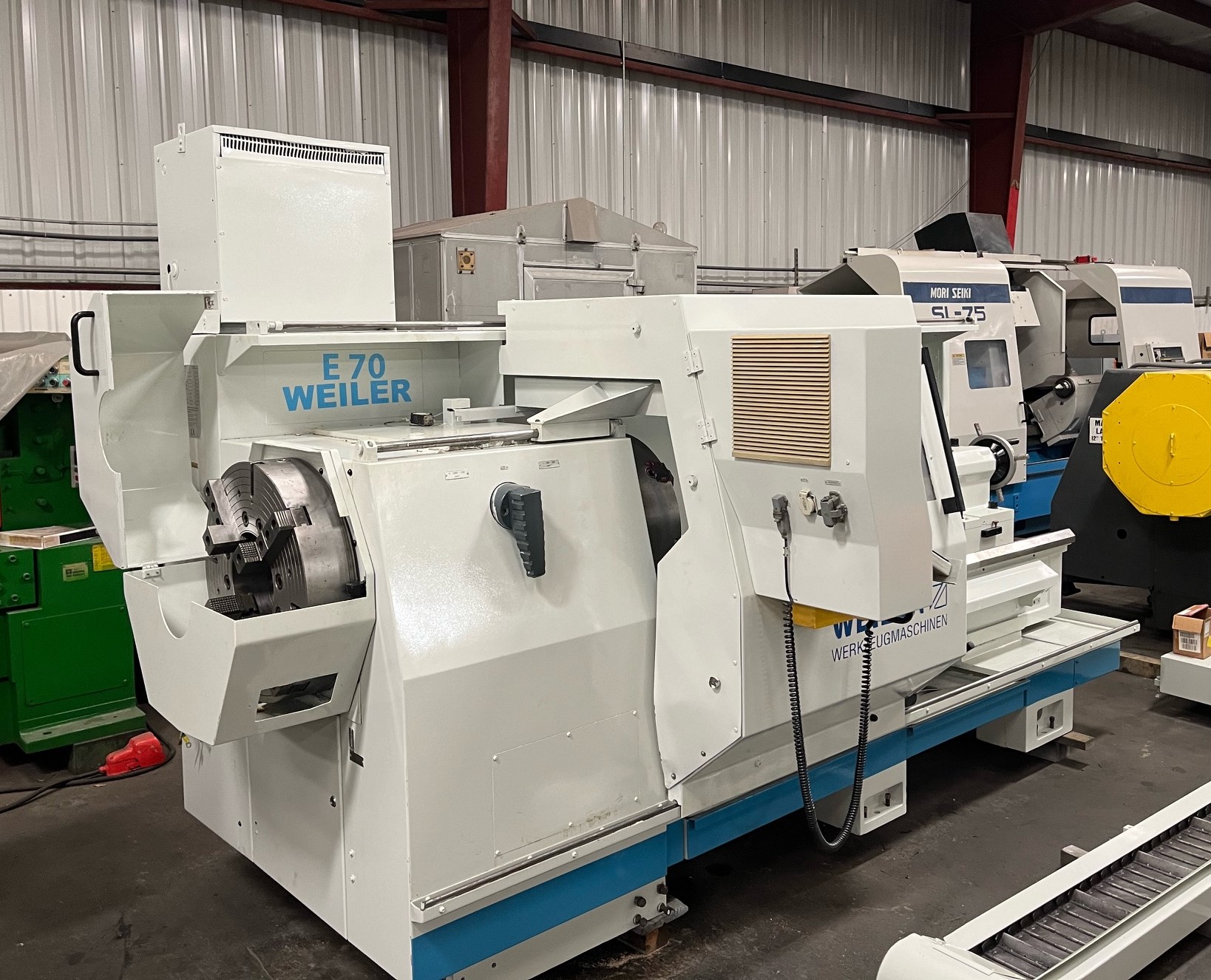

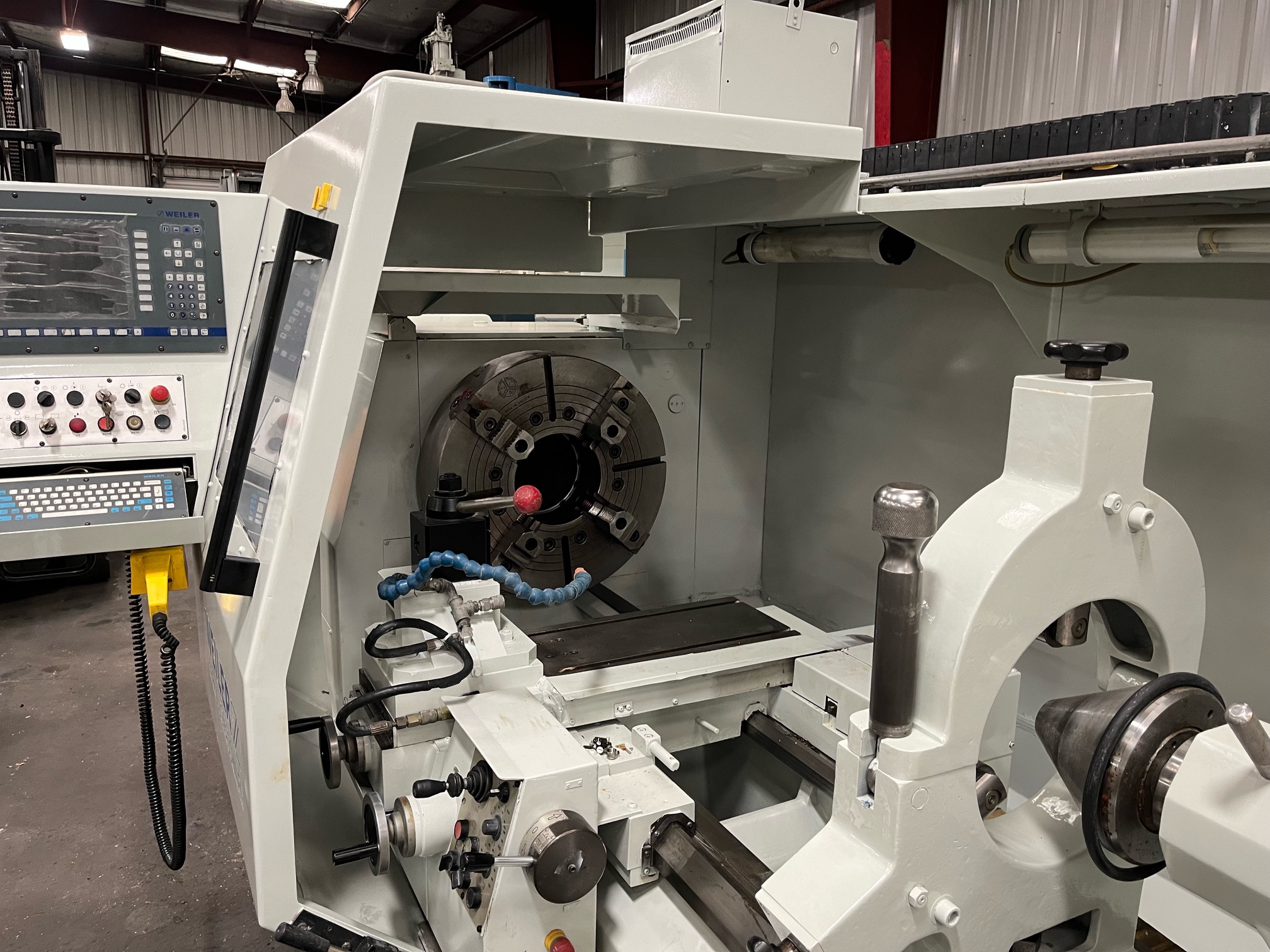

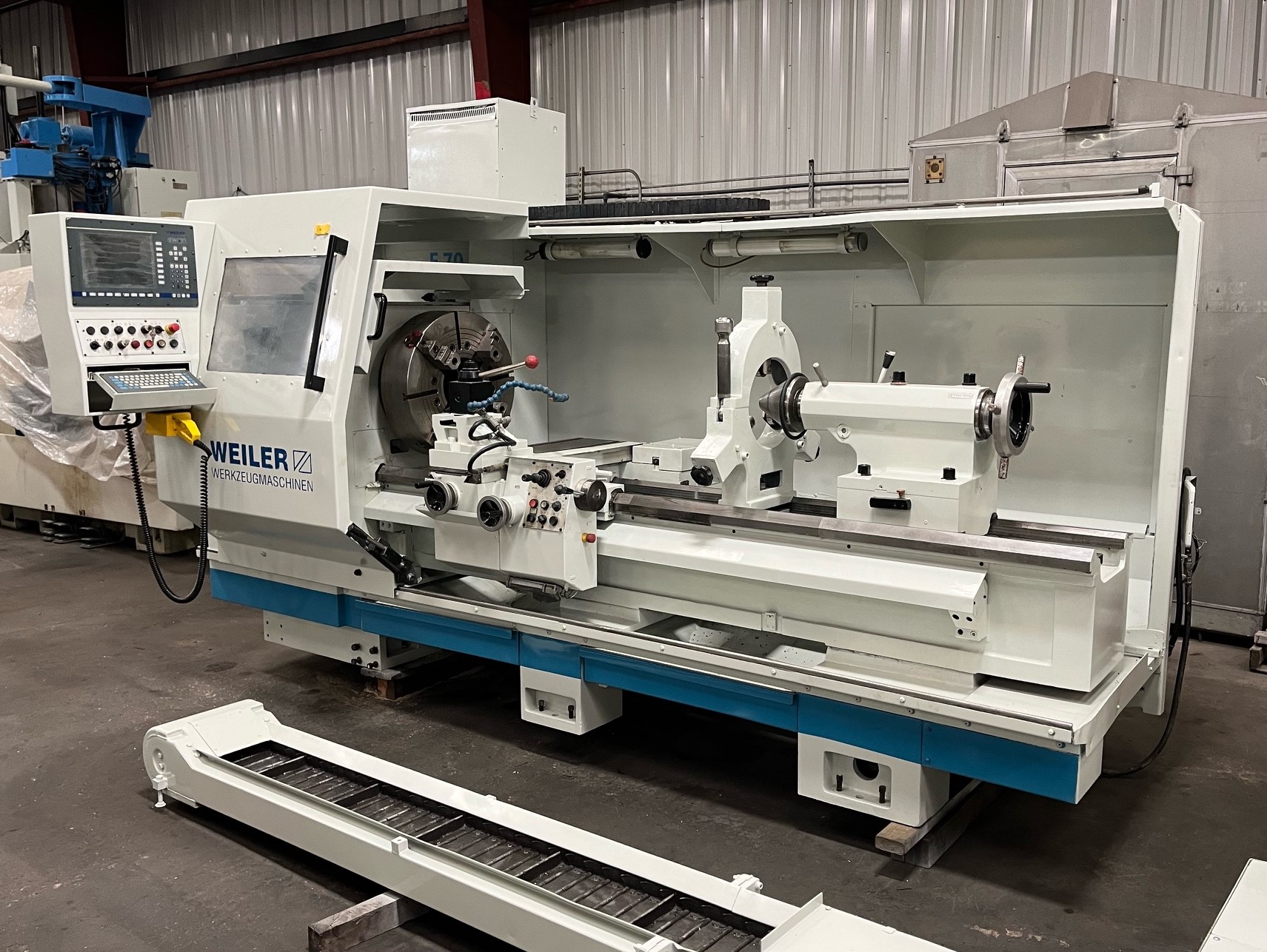

WEILER E 70 TEACH AND LEARN FLAT BED LATHE
Specifications:
Model
E 70/2D
Serial
number/YOM
256
Center
distance
80”
Height
of centers
14”
Swing
over bed
28”
Swing
over cross slide
17”
Width
of bed
19”
Travel
of cross slide
16”
Travel
of top slide
5.5”
Length
of cross slide
33”
Width
of cross slide
10”
Tool
post
Yes, Aloris 4-way quick change
Spindle
hole
8”
Chuck
4-jaw SCA 24” OD x 9” ID
Main
motor
32 hp. continuous/44 hp. 30 minute rating
Speed
range
1-1,800 rpm (Low 1-450, High 4-1,800 rpm)
Rapid
rate-long/cross
278 ipm./131 ipm.
Tailstock
Mk 6
Chip
conveyor
Yes
Operating voltage
400/3/60 (requires step up or down transformer)
Dimensions, lathe
15’ W x 8’ 6” W x 8’ 2” H (24” high transformer)
Dimensions chip conveyor
16’ W x 20 pan x 48” coolant tank L x 5’ H
Weight
13,000 lbs.
Price: $ 89,500.
FOB
Houston, TX. Subject to prior sale.
Comments: This lathe is capable of 3-axis milling and drilling
IF you purchase the milling tool
which fits on the Aloris tool post. It also has spindle
orientation where you can mill slots while
the spindle is turning.
